Product Overview

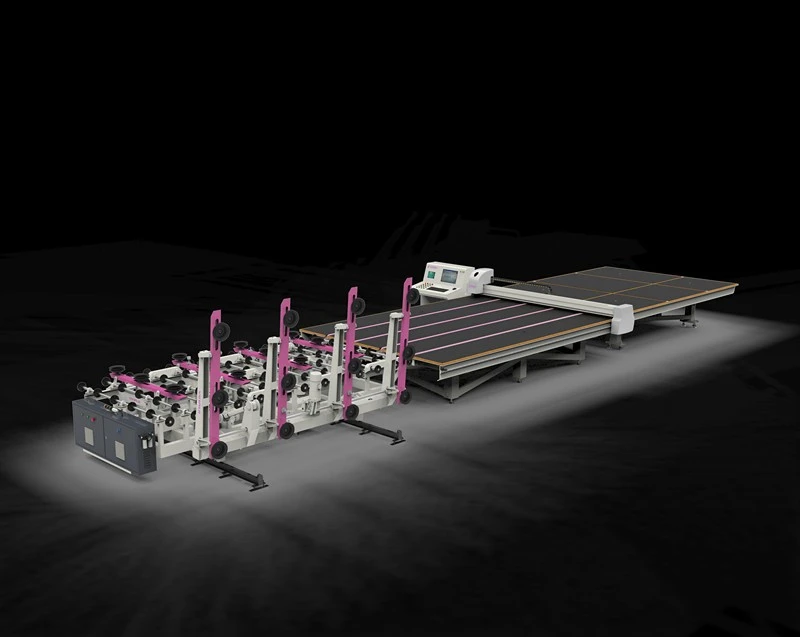

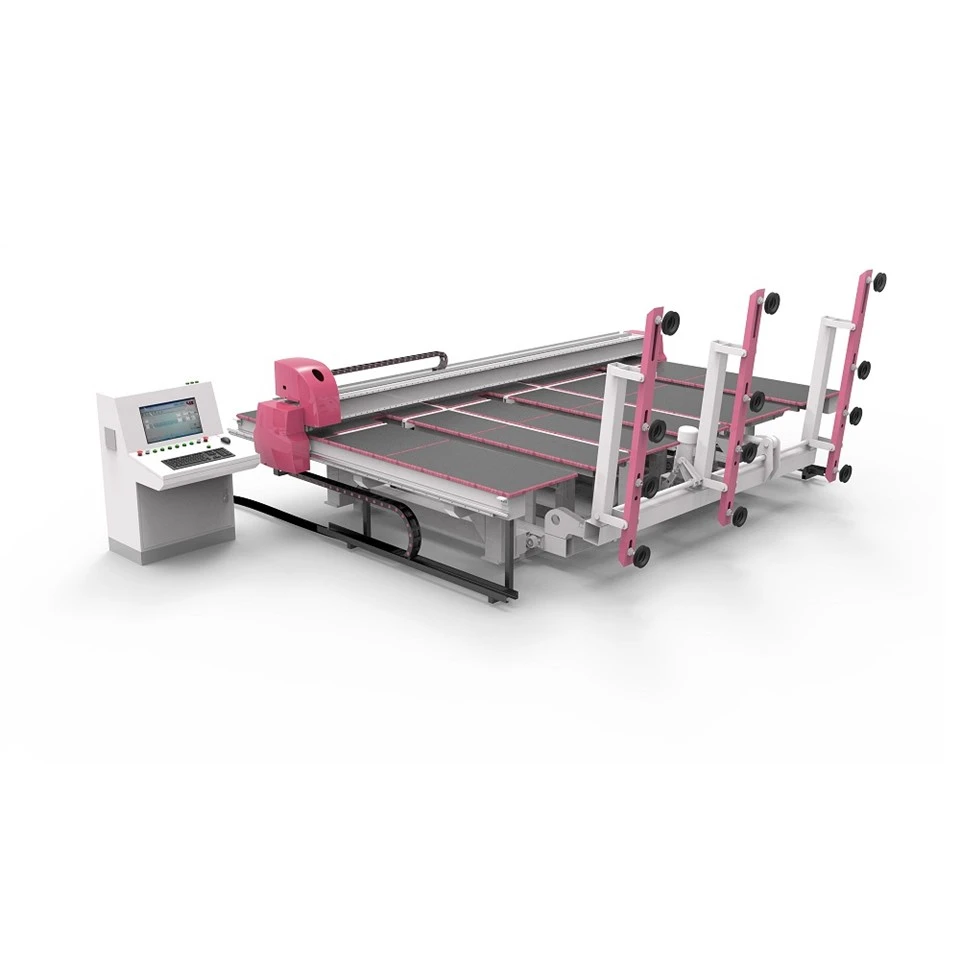

The Automatic Glass Cutting Machine is a CNC-controlled system for automated straight-line and shaped cutting of flat glass. It combines programmed cutting paths, automatic scoring, controlled cutting pressure and automatic oil supply for glass processors requiring repeatable cutting dimensions and efficient sheet utilization.
Product Parameters
Mechanical and Electric parts:
|
Mechanical |
Electric |
||
|
Platen |
Density board |
Controller |
Galil |
|
Guide |
Taiwan |
Servo Motor |
Yaskawa |
|
Relay |
SCHNEIDER |
||
|
Cutting Wheel |
Bohle |
Terminal |
WEIDMULLER |
|
laser sensor |
PANSONIC |
Proportional solenoid valve |
SMC |
Technical Parameters:
|
Equipment dimensions |
4400mm*3140mm |
Equipment weight |
3T |
|
Max Glass size |
3660mm*2440mm |
Height |
800mm±50mm |
|
Glass Thickness |
3~19mm |
Oil supply method |
Pneumatic automatic oil filling |
|
Cutting Speed |
0~180m/min |
Power supply |
380V/50HZ |
|
Straight line parallelism |
≤±0.25mm/m |
Equipment power |
11KW |
|
Diagonal accuracy |
≤±0.30mm/m |
Compressed air |
0.6MPa |
|
Loading Arm |
3 |
Cutting Holder |
The cutter head can be rotated 360° (can accurately cut any straight line and various shaped glass) |
Automatic CNC Cutting Workflow
Cutting Plan Input
The required glass dimensions and cutting patterns are entered into the cutting control system before processing.
Sheet Positioning
The glass sheet is placed on the cutting table and aligned with the machine's working area.
CNC Path Execution
The servo-driven cutting head follows the programmed X-Y coordinates to execute the selected cutting pattern.
Controlled Scoring
The cutter wheel applies the programmed cutting pressure while moving along the defined path.
Automatic Lubrication
Cutting oil is supplied pneumatically to the cutting wheel during the scoring operation.
Breakout
After scoring, the glass is separated along the completed cutting lines for subsequent edge processing or assembly.
Cutting Capability
Straight-Line Cutting
The 360° rotatable cutter head follows programmed X-Y coordinates while maintaining the required cutting-wheel orientation for horizontal, vertical and angled straight cuts.
Shaped Glass Cutting
The CNC movement system follows programmed curves, circles and other non-linear paths for shaped glass components and customized panel designs.
Thickness-Adjusted Scoring
The controlled cutter-head pressure can be adjusted according to the glass thickness, helping maintain a consistent score depth across different glass specifications.
Large-Format Processing
The machine's working table accommodates large flat-glass sheets within its specified processing area, allowing large panels to be processed as a complete sheet rather than divided into smaller sections.
Repeat Production
Previously prepared cutting programs can be recalled for repeat orders, allowing the same cutting coordinates and pattern to be reproduced without manually marking each sheet.
Machine Configuration & Options
The machine uses industrial-grade control, motion and cutting components selected for stable positioning, repeatable scoring and long-term serviceability.
|
Item |
Configuration / Option |
|
CNC Controller |
Galil |
|
Servo Motor |
Yaskawa |
|
Guide Components |
Taiwan-sourced components |
|
Cutting Wheel |
Bohle |
|
Electrical Components |
Schneider Electric relay and Weidmüller terminals |
|
Laser Sensor |
Panasonic |
|
Proportional Solenoid Valve |
SMC |
|
Cutter Head |
360° rotatable |
|
Automatic Oil Filling |
Pneumatic oil supply during scoring |
|
Air-Float Table |
Optional for easier manual glass movement and positioning |
|
Automatic Loading Arms |
Optional suction-cup loading from glass storage |
|
Laser Scanning |
Optional for supported template and shape recognition applications |
|
Processing Direction |
Right-to-left or left-to-right |
|
Table Configuration |
Working area can be configured for the required glass sheet size |
Manufacturing, Calibration & Pre-Shipment Testing
X-Y Axis Calibration
The X-Y movement system is checked at defined positions across the working area for straightness and perpendicularity. Measured deviations are compared with the specified machine tolerances.
Positioning & Cutting Accuracy
The cutter head is moved to programmed coordinates and test glass is cut using defined patterns. Actual positions and cut dimensions are checked against the programmed values.
Cutting Pressure & Oil Supply
The cutter head is operated through repeated scoring cycles to verify stable pressure and continuous cutting-oil delivery to the wheel.
Servo & Control System Test
The X-Y servo system, sensors and control functions are operated through repeated movements to check positioning response, signal feedback and abnormal movement.
Continuous Run & Final Inspection
The completed machine is operated continuously before shipment. Mechanical movement, electrical functions, pneumatic components and safety functions are checked before final packing.
Installation, Documentation & Maintenance Support
Pre-Shipment Inspection
Each completed machine undergoes functional inspection and test cutting before shipment. Electrical functions, mechanical movement, pneumatic systems and cutting performance are checked against the confirmed machine configuration.
Test Cutting & Shipment Confirmation
Test-cutting results can be documented with photos or videos for customer confirmation before packing, providing a record of machine operation prior to dispatch.
Export Packing Inspection
The machine is inspected before packing to confirm component protection, electrical disconnection where required, accessory completeness and packaging condition for international transportation.
Installation Documentation
The installation package can include:
- Machine layout and installation drawings
- Foundation and positioning requirements
- Electrical schematics and connection information
- Power supply requirements
- Compressed-air requirements
- Operation and maintenance manuals
- Cutting-system documentation
Commissioning Assistance
Remote technical support is available for machine installation, electrical and pneumatic connection, control-system configuration and initial test cutting.
Remote Troubleshooting
Technical support is available for operating issues, cutting-system adjustments and basic fault diagnosis during machine operation.
Replacement Parts
Cutting wheels, cutter holders, oil-system components and other service parts are available for routine maintenance and replacement.
Commercial Information
|
Item |
Information |
|
MOQ |
1 complete machine |
|
Warranty |
Warranty period and coverage stated in the commercial quotation |
|
Lead Time |
Confirmed according to the selected machine configuration |
|
Payment Terms |
Agreed in the sales contract |
|
Spare Parts |
Replacement cutting wheels, cutter holders and oil-system components available |
|
Shipping Terms |
EXW, FOB or CIF |
FAQ
Q: What software is used for automatic glass cutting?
A: The machine uses a CNC cutting control system for entering, storing and executing programmed cutting patterns.
Q: Can cutting files be prepared from CAD drawings?
A: CAD-based cutting data can be used when supported by the installed cutting software and file format.
Q: Does the machine require a dedicated cutting wheel?
A: Yes. The cutting system uses a specified glass cutting wheel and cutter holder matched to the machine configuration.
Q: How often should the cutting wheel be replaced?
A: Replacement frequency depends on wheel wear and cutting condition. The wheel should be replaced when scoring quality becomes inconsistent or the wheel is visibly worn.
Q: What utilities are required for installation?
A: The machine requires a 380V/50Hz electrical supply and compressed air at 0.6 MPa, together with the installation conditions specified in the machine documentation.
Q: How many operators are normally required?
A: The automatic cutting cycle reduces manual cutting work; operator requirements depend on whether manual loading and glass breakout are used or automatic loading equipment is installed.
Q: What information is needed before machine installation?
A: The factory should prepare the required installation space, electrical supply, compressed-air connection and access for machine delivery and positioning.
Q: Can the same machine be used for different cutting orders?
A: Yes. Different cutting patterns can be programmed and selected for individual production orders.
Q: What spare parts should be purchased with the machine?
A: A basic spare-parts package should include cutting wheels, cutter holders and commonly required oil-system components.
Q: What should be included in an RFQ for an automatic glass cutting machine?
A: Provide the maximum glass sheet size, thickness range, required cutting types, daily production volume, preferred loading method and factory power supply.
